S01
Night ISR & target acquisition
Uncooled thermal imaging with 30× optical zoom gives persistent reconnaissance and identification in darkness, smoke and haze, holding lock on man-sized targets to 300 m and vehicles to 800 m.
Dual-sensor gimbal30× zoom + thermal
20 km linkRF or fibre-optic
10″ folding props2-blade · self-locking
Foldable · AI-guided · Fibre-optic option

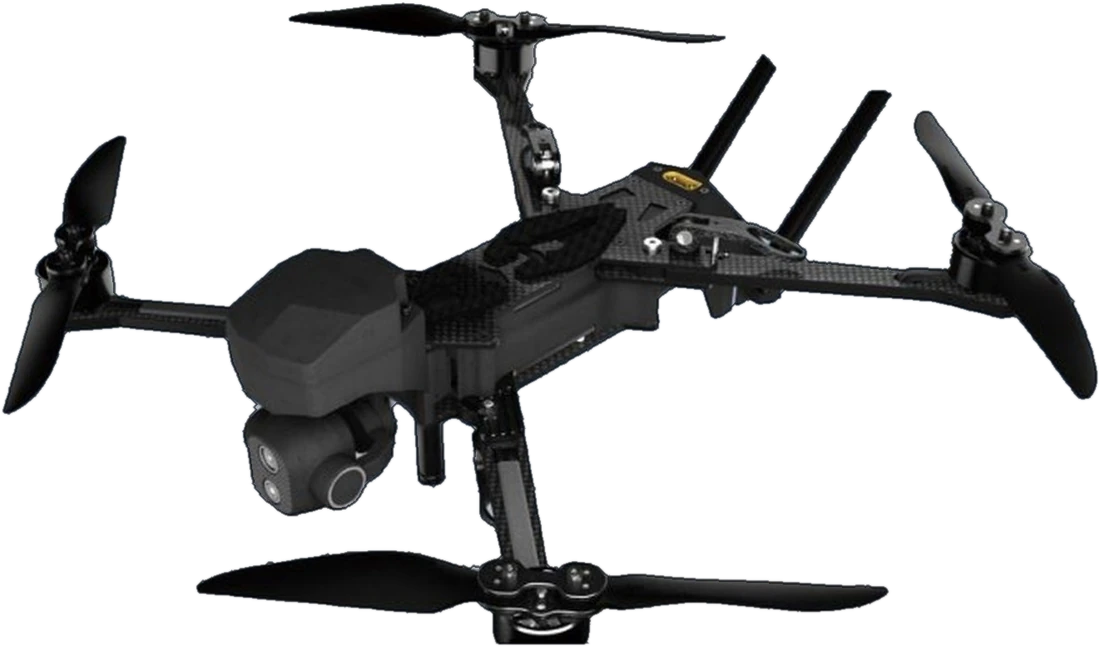

FPV Fighter
FPV Fighter
Drone Z10
A foldable carbon-fibre FPV with a dual-sensor AI gimbal: 30× day camera and thermal for 24-hour operation. AI target lock holds the designated object without operator input, and pre-loaded waypoint missions fly unaided on fibre-optic tether or a 20 km frequency-hopping link.
3 kgMax payload
32 minEndurance, no payload
20 kmData link
150 km/hMax speed
01 / Capabilities
Built for the fieldSix capabilities,
Six capabilities,
one airframe.
What the Z10 does, in one grid.
01
AI target lock
AI recognition with dynamic tracking. Terminal guidance holds the designated target to 300 m on man-sized objects and 800 m on vehicles, with no operator input after lock.
02
Night vision & thermal
384×288 uncooled thermal at F1.0 alongside a 30× day camera on the same 3-axis gimbal. Detection in darkness, smoke and haze.
03
Autonomous mission flight
Upload a waypoint mission and the aircraft flies it unaided: visual-inertial navigation plus multi-band GNSS. Finger-tap re-tasking and one-click return.
04
Fibre-optic or RF link
Fibre-optic tether with zero RF emission and no jamming exposure, or a 20 km frequency-hopping digital link with omnidirectional anti-interference.
05
3 kg high-speed payload
Carries 3 kg at up to 150 km/h in altitude-hold mode. A modular bay takes sensor or mission payloads without airframe modification.
06
Foldable carbon-fibre airframe
Folds from 374 mm to 165 mm across for backpack and case carriage, with self-locking 10″ propellers.
02 / Deployment

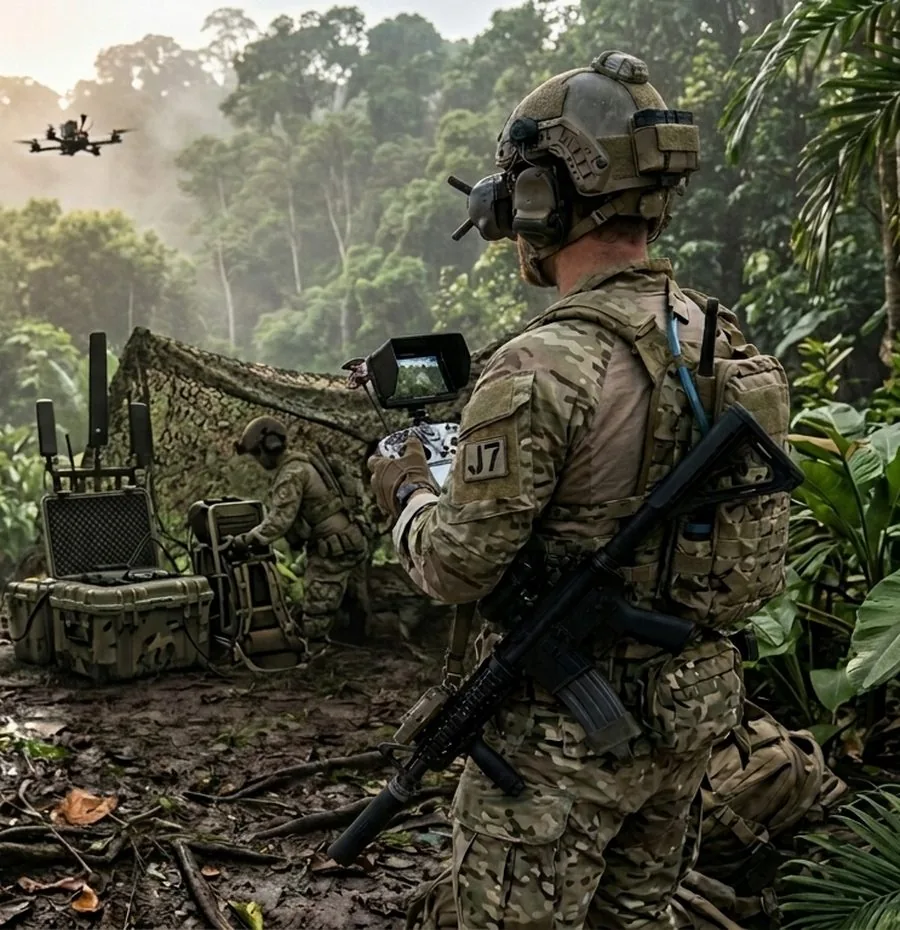

Deployed where
Deployed where
others can't reach.
The Z10 folds to case dimensions and goes from carry to airborne with a single operator. Carbon-fibre construction and a −10 °C to +40 °C operating envelope keep it mission-capable in jungle, desert and urban terrain without ground support.
<60sDeploy time
1Operator
2,650gTake-off weight
- Foldable airframe
- Case portable
- All-terrain
- −10 °C to +40 °C
03 / Component 01

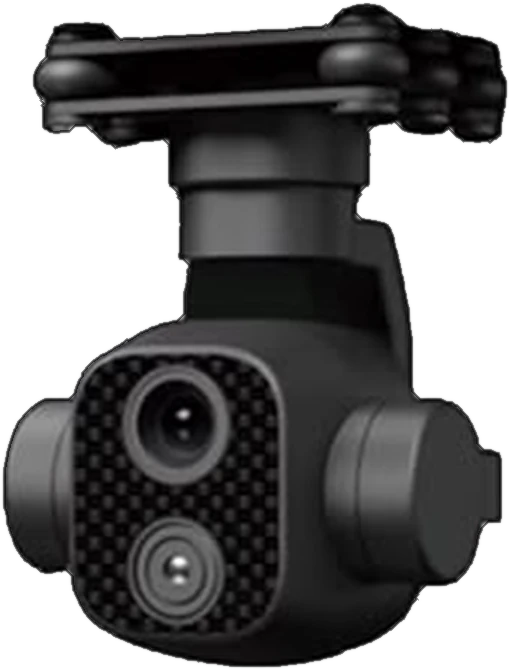

S12 3-axis
S12 3-axis
AI gimbal.
A 117 g three-axis stabilised head carrying a 30× zoom visible lens and an uncooled thermal core on the same optical axis. Heading, pitch and roll are held to 0.1°, so AI recognition and terminal guidance stay locked through aggressive manoeuvres and in darkness.
- 01
Dual-sensor optical payload
2880×1620 visible imaging on a 1/2.7″ CMOS with 30× zoom, paired with a 384×288 uncooled thermal lens at F1.0.
- 02
AI terminal guidance
Dynamic recognition and tracking holds a man-sized target to 300 m and a vehicle to 800 m.
- 03
0.1° stabilisation
Steady image for identification and recording at full zoom and at speed.
- 04
Low-latency video and storage
1280×720 at 30 fps live, sub-10 ms thermal response, H.265 / JPEG recording to microSD up to 128 GB.
04 / Component 02

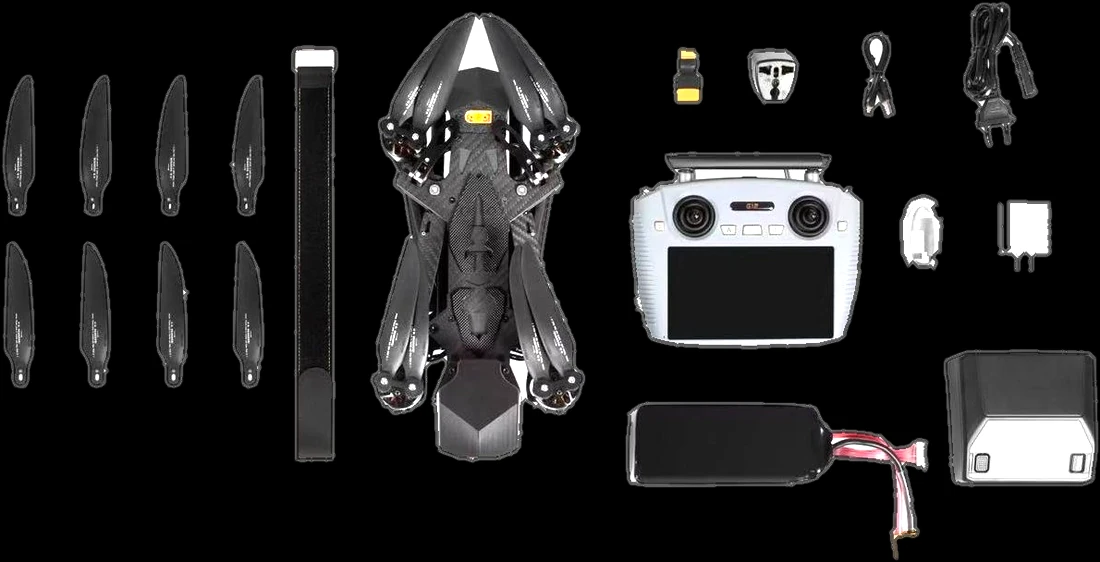

Complete field systemEverything
Everything
in one case.
Every unit ships as a closed operational kit: aircraft, ground station, power, spares and a 460 × 400 × 290 mm transit case, so a crew deploys, recovers, recharges and re-launches without a logistics tail.
- 01
R12 ground control station
High-brightness display with dual sticks and finger-tap mission control: waypoint entry, target lock and one-click return from one handheld unit.
- 02
22.2 V 6S 12,000 mAh pack
1,150 g battery at ≥280 Wh/kg: about 32 minutes clean, or about 12 minutes under a full 3 kg payload.
- 01
200 W AC field charger
Rapid turnaround between sorties from mains or generator power.
- 02
Spares and transit case
Eight 10″ two-blade self-locking propellers, battery strap and cabling in a foam-cut hard case.
- Airframe
- R12 ground station
- 6S 12,000 mAh
- 200 W AC charger
- 8× spare props
- Battery strap
- Cable set
- Hard transit case
05 / Scenarios
Operational useMission
Mission
scenarios.
S02
Terminal guidance & payload delivery
AI terminal guidance drives the airframe onto the designated point at up to 150 km/h with no operator input after lock, carrying up to 3 kg of mission payload.
S03
RF-denied & contested airspace
Fibre-optic tether mode emits no RF and cannot be jammed; the 20 km frequency-hopping link with omnidirectional anti-interference covers everything beyond tether range.
06 / Demonstration
FootageSee it
See it
in flight.
Field footage of the Z10: foldable deployment, autonomous waypoint flight and AI target lock through the S12 dual-sensor gimbal.
07 / Specifications
Full technical dataFull technical
Full technical
data.
Performance
Speed, GPS mode100 km/h
Speed, altitude-hold150 km/h
Range / total mileage20 km
Endurance, no payload~32 min
Endurance, 2 kg~15 min
Endurance, 3 kg~12 min
Max payload3 kg
Operating temperature−10 °C to +40 °C
Physical & airframe
Unfolded (W×L×H)374 × 346 × 120 mm
Folded (W×L×H)165 × 337 × 120 mm
Diagonal449 mm
Weight without battery1,500 g
Battery weight1,150 g
FrameCarbon-fibre, foldable
Propeller10″ 2-blade, self-locking
Transit case460 × 400 × 290 mm
Propulsion & electronics
MotorT3-10
ESC6S 65A 4-in-1
Battery22.2 V 6S 12,000 mAh
Energy density≥280 Wh/kg
Charger200 W AC
Flight controllerH743-class
IMUBMI088, automotive grade
Autopilot stackArduPilot, open source
Comms & navigation
Comms modeFibre-optic / RF
Data link range20 km
RC bands2400–2476 / 5725–5829 MHz
Anti-jammingFrequency hopping, omni
NavigationVIO + MEMS inertial
GNSSMulti-band triple-mode
AutonomyWaypoint, one-click return
S12 AI camera system
Visible resolution2880 × 1620
CMOS / zoom1/2.7″ · 30×
Video transmission1280 × 720 @ 30 fps
Thermal resolution384 × 288
Focal length / aperture7 mm · F1.0
Thermal FOV24.8° × 18.7°
Spectral range8–14 µm
Pixel pitch / frame rate12 µm · ≤25 Hz
Response time<10 ms
StorageH.265 / JPEG, microSD ≤128 GB
Gimbal weight / accuracy117 g · 0.1°
AI lock, man-size / vehicle300 m / 800 m
Figures are nominal. Performance varies with payload, altitude, temperature and wind. Specifications are the manufacturer's and are subject to the delivered configuration; final figures are confirmed in the quotation.
Start a conversation
See the Z10
See the Z10
in action.
Request a technical briefing, a live demonstration or export documentation. Supplied to authorised defence and law-enforcement end users, with training and spares.
